Export to NX2412: "the builder for this command is retired" error

Modified on Fri, 24 Apr at 12:00 PM

TABLE OF CONTENTS

Problem description
Root cause
- Solution 1: Environment variable (recommended)
- Solution 2: Configuration via ifugnx.cfg
Further steps

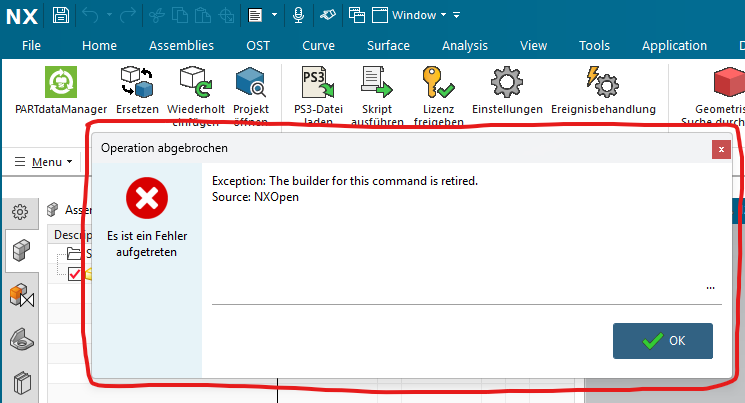

Problem description

When transferring CAD parts from ENTERPRISE 3Dfindit to Siemens NX (version NX 2412 and newer) via

“Transfer to CAD (NX)” command, the following error occurs:

Exception: The builder for this command is retired
Source: NXOpen

Root cause

Starting with Siemens NX 2412, Siemens introduced internal changes in the NXOpen API.

These changes conflict with the way ENTERPRISE 3Dfindit creates HTTP Notes / Attributes, which leads to the reported error during export.

There are two alternative solutions. Applying either one is sufficient.

Solution 1: Environment variable (recommended)

Define the following environment variable on the NX client system:

UGII_ALLOW_SPECIALIZED_NOTES=true

Then:

Restart Siemens NX
Retry the export from PARTdataManager / ENTERPRISE 3Dfindit

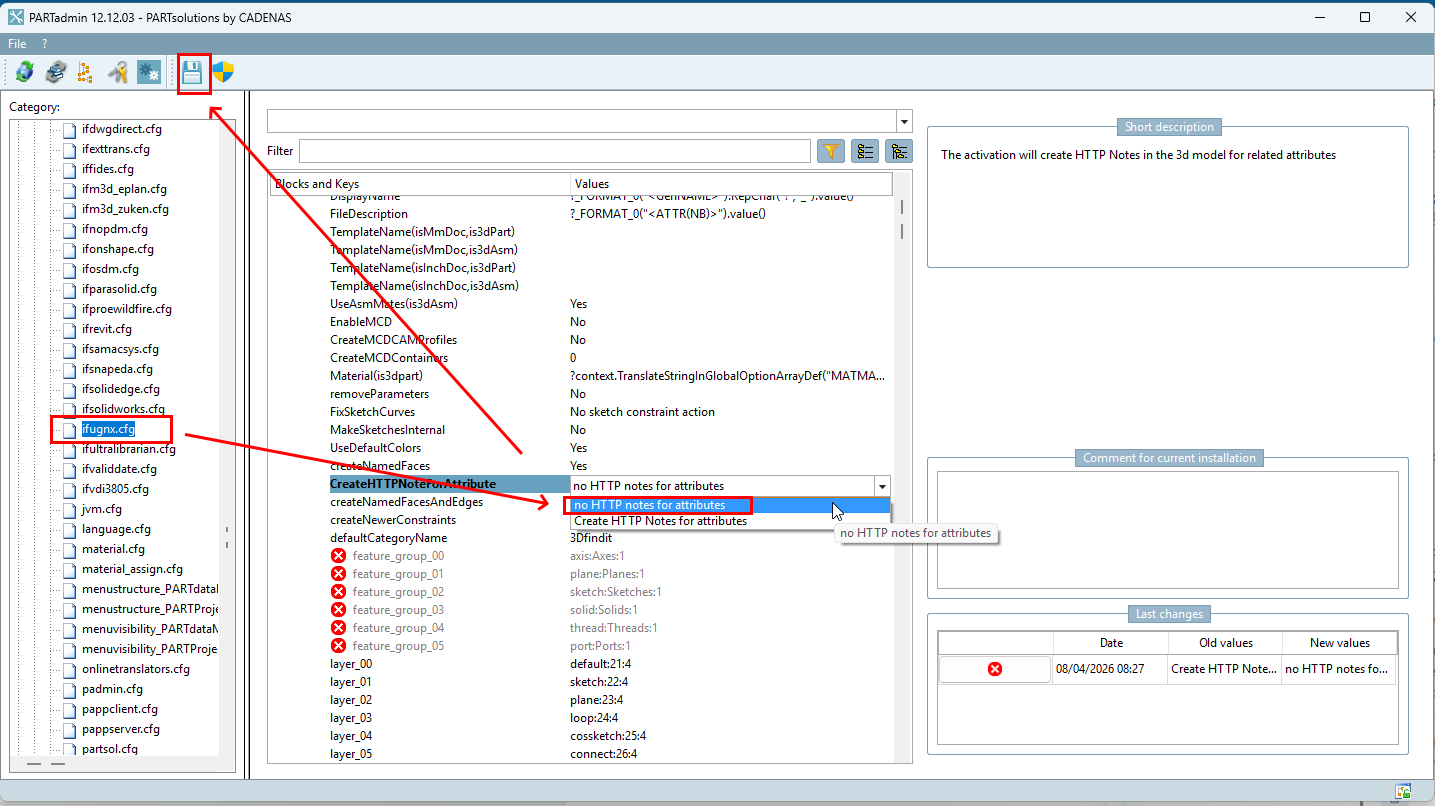

Solution 2: Configuration via ifugnx.cfg

1. Open the configuration file via PARTadmin:

ifugnx.cfg

2. Set the following parameter:

CreateHTTPNoteForAttribute=0

Save changes

Restart Siemens NX
Retry the export

Further steps

If the solution/approaches described above have not helped, so that an error message continues to appear or you have a query about the article, you can contact our support team in writing at any time.

To open a ticket, you can register or log in at the top right of this page.
